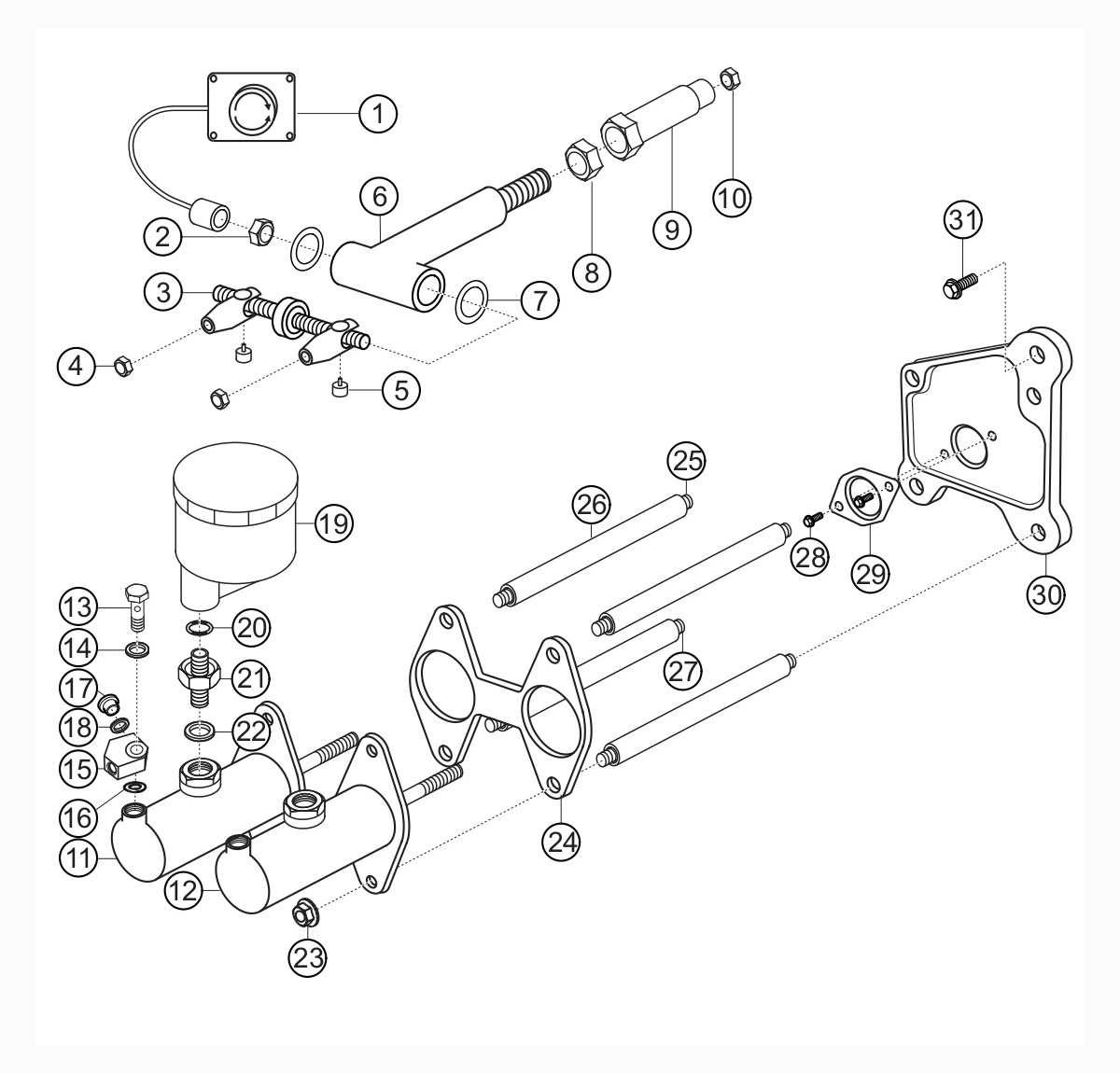

Pièces détachées

Pos.	Pièce n°.	Description	Qté	Modèle
1	99764180991	adjustment cable assembly	1	MOTORSPORT
1	99764181190	potentiometer	1	MOTORSPORT
2	9963553879A	hex nut 6KT-MU	1	MOTORSPORT
3	9963552399A	adjusting spindle (incl. Pos 4)	1	MOTORSPORT
4	9963557799A	hex nut 6KT-MU	2	MOTORSPORT
5	9963552619A	sliding block	2	MOTORSPORT
6	9963552499A	adjusting device rod	1	MOTORSPORT
7	99735551390	spacer disk	2	MOTORSPORT
8	90003401402	90003401402 - hex nut M12X1,5	1
9	99635592701	99635592701 - pressure part	1
10	90038001501	90038001501 - hex nut M6	1
11	9963550179D	master brake cyl. front orange	1	MOTORSPORT
12	9963550179C	master brake cylinder rear green	1	MOTORSPORT
12	9963550179A	master brake cyl.rear PCCB blue	1	MOTORSPORT
13	9963555619A	hollow screw	2	MOTORSPORT
14	9973555639A	sealing ring 17,6X11,3X1,5	2	MOTORSPORT
15	99735565790	connecting piece	2	MOTORSPORT
16	90012316320	sealing ring 17X10,2X1	2	MOTORSPORT
17	99735585790	plug	3	MOTORSPORT
18	99970735540	99970735540 - o-ring 7,65X1,65	3
19	9963552119A	compensating tank incl.P.20-22	2	MOTORSPORT
20	99970766840	o-ring 17,1X1,76	1	MOTORSPORT
21	--------------------	neck	1	MOTORSPORT
22	99912304220	sealing ring 11,3X17 CU	1	MOTORSPORT
23	90037700303	90037700303 - hex nut M8	4
24	9963552459A	flange for mbc	1	MOTORSPORT
25	9963557879A	threaded rod M8X140	3	MOTORSPORT
26	9963551479A	distance sleeve	4	MOTORSPORT
27	9963557859A	threaded rod M8X160	1	MOTORSPORT
28	90007536302	90007536302 - hex screw + washer M6X10	2
29	9963552539A	slide bearing with flange	1	MOTORSPORT
30	9963552439A	mounting plate	1	MOTORSPORT
31	90037803301	90037803301 - hex screw M8X30	1

604-000
